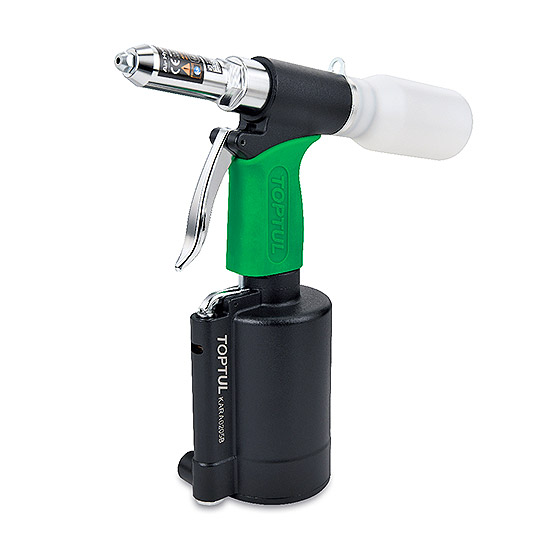

Air Hydraulic Riveter (Basic Model)
Air Hydraulic Riveter (Basic Model)

Air Hydraulic Riveter (Basic Model)

  • ITEM NO: KARA0205B
  • Suitable for Aluminum/Steel & Stainless Steel rivets
  • Designed for professional riveting and continuous operation
  • Robust aluminum alloy oil cylinder and air cylinder bodies
  • Oil leakage and air leakage free model, ideal for both light and heavy duty production requirements
  • Set includes 4 interchangeable standard nosepieces, rivet mandrel collector, two service combination wrenches and brush
Rivet Diameter Rivet Material
Aluminum Steel Stainless Steel (Inox)
2.4 mm or 3/32″ ● ● ●
3.0 / 3.2 mm or 1/8″ ● ● ●
4.0 mm or 5/32″ ● ● ●
4.8 / 5.0 mm or 3/16″ ● ● ●
DEALERS
Add to Enquiry
Categories: ,

Features

ITEM NO. KARA0205B
SPECIFICATIONS CTN: 10
Rivet Diameter 2.4, 3.0/3.2, 4.0, 4.8/5.0 mm or 3/32″, 1/8″, 5/32″, 3/16″
Stroke Length 16mm
Traction Power 9000 N / 2000 lbf
Air Pressure 80~95 PSI (5.5~6.5 BAR)
Air Consumption Per Rivet 0.07 CFR / 2.1 LPR
Air Inlet 1/4″ PT
Min. Air Hose  5/16″ I.D.
Overall Length 10-11/16″ / 272mm
Net Weight 3.76 lbs / 1.71 kgs
