Features
| ITEM NO. | Thread Size |  (mm) |
L (mm) |
BOX (PCS) |
CTN (PCS) |
| KA20PM2J | 1/4″ PT | 14 | 40 | 10 | 400 |
| KA30PM2J | 3/8″ PT | 17 | 42.5 | 10 | 400 |
| KA40PM2J | 1/2″ PT | 21 | 44.5 | 10 | 400 |

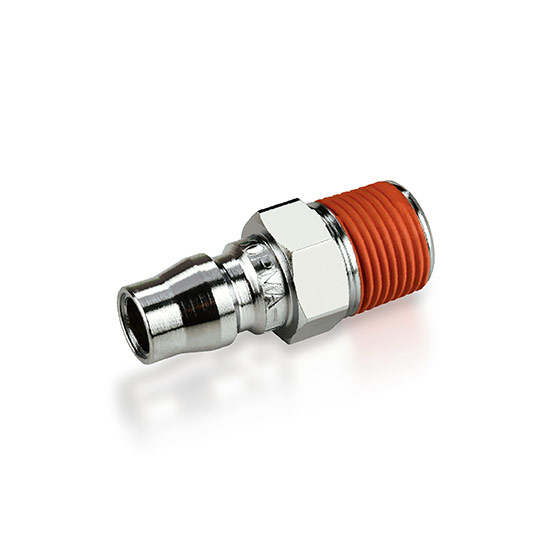

Air Inlet Nipple with Male Thread (JP Type)
 ITEM NO: KA20PM2J / KA30PM2J / KA40PM2J Rugged steel construction for high corrosion resistance and long life Male threads on the coupling feature pre-applied thread sealant Used in Japan, China, Korea and etc. Max. Working Pressure: 218 PSI (15 BAR / 15.3 kgf/cm²) Max. Pressure: 290 PSI (20 BAR / 20.4 kgf/cm²) Working Temperature: -20°C to 80°C |
