Features
| ITEM NO. | DRIVE | CAPACITY | Aluminum Housing L(mm) |
Overall Length W/Extension Tubes (mm) | CTN (PCS) |
| ANAQ32B0 | 1″ | 750-2000Nm | 950 | 2350 | 1 |
| ANAQ48C0 | 1-1/2″ | 1500-3000Nm | 1050 | 2820 | 1 |

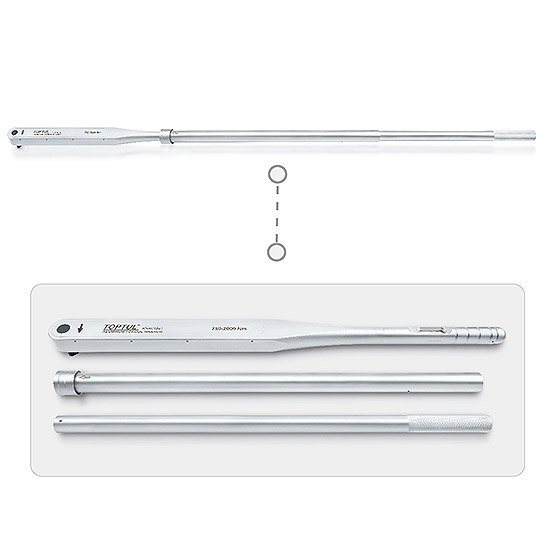

Aluminum Torque Wrench
- ITEM NO: ANAQ series
- Lightweight and robust aluminum alloy housing
- Rugged construction for all industrial applications and extreme continuous use
- Single square drive for controlled clockwise tightening
- Unique multi-lever mechanism ensures length independent and accurate torque.
The torque output is the same from different grip position during fastening application - Automatic tactile impulse and audible signal when desired torque is reached

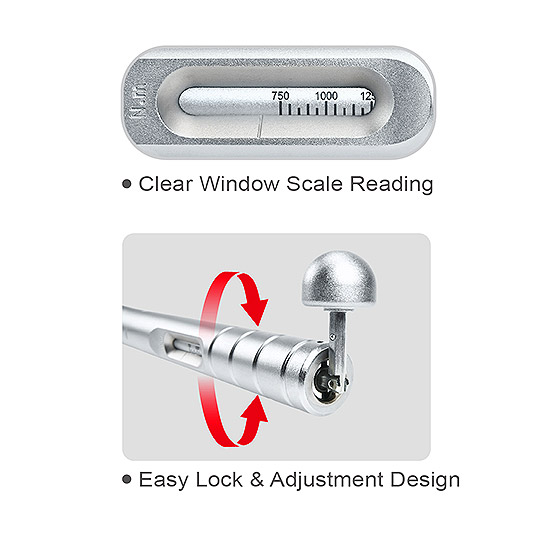

- Easy and accurate torque setting through adjustment knob on the end of the handle
- Supplied with extension handles to minimize operator effort when higher torque is required
- Ideal for various industrial manufacturing areas such as industrial automation, wind power industry, aerospace industry and etc.
- Tolerance of torque accuracy ±3%
- Tested and certified according to DIN EN ISO 6789, ASME B107.300 (ASME B107.14)
