Digital Torque Wrench

  • ITEM NO: DT-030N / DT-100N / DT-200N
  • Torque Accuracy: CW ±1% & CCW ±1.5 % tolerance of the set scale value
  • Precise reading accuracy for a minimum 5,000 tightening cycles
  • Operating Mode: Peak hold mode (peak value detection) / Track mode (continuous display)
  • Torque Unit Selection: Nm, Ft-Lb, In-Lb, Kg-m
  • Storage Memory: 10 Readings

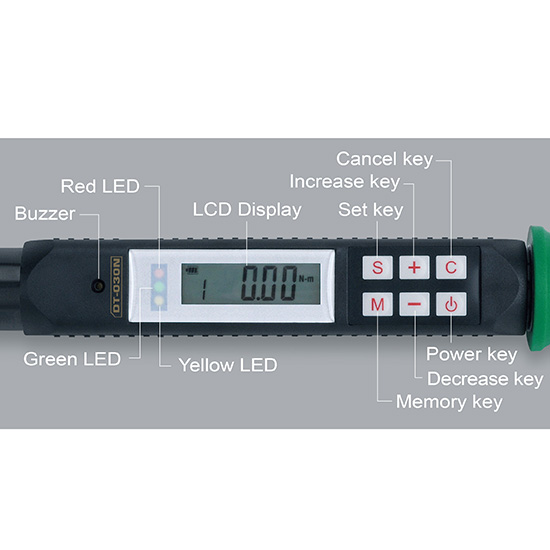

  •  Three way lights and buzzer when torque value is reached
  • Low battery indicator and auto shut off (after 65 seconds)
  • 3 Position, 32 Teeth Ratcheting Mechanism: Clockwise / Fixed / Counterclockwise
  • Ergonomically designed bi-component soft grip handle
  • Tested and certified according to DIN EN ISO 6789, BS EN 26789
DEALERS
Add to Enquiry
Categories: ,

Features

ITEM NO. DRIVE Torque Range L
(mm)		 CTN
(PCS)
(Nm) (Ft-Lb) (In-Lb) (Kg-m)
DT-030N 1/4″ 3.00~30.00 2.21~22.13 26.5~265.5 0.30~3.05 359 12
DT-100N 3/8″ 10.0~100.0 7.3~73.7 88~885 1.02~10.20 440 12
DT-200N 1/2″ 20.0~200.0 14.7~147.5 176~1769 2.03~20.38 530 6



Torque Accuracy CW ±1% / CCW ±1.5%
Storage Memory 10 Readings
Torque Unit Selection Nm, Ft-Lb, In-Lb, Kg-m
Display Resolution 0.01 Nm, 0.01 Ft-Lb, 0.1 In-Lb, 0.01 Kg-m (DT-030N)
0.1 Nm, 0.1 Ft-Lb, 1 In-Lb, 0.01 Kg-m (DT-100N, DT-200N)
Operating Mode Peak Hold Mode / Track Mode
Gear Teeth 32 Precision Teeth
Ratcheting Mechanism Clockwise / Fixed / Counterclockwise
Working Temperature -10˚C ~ 55˚C
Storage Temperature -40˚C ~ 85˚C
Humidity 0 ~ 90%
Battery 1.5V AAA x 3pcs (DT-030N)
1.5V AA x 3pcs (DT-100N, DT-200N)
Battery Life 200 Hours
Auto Shut Off 65 Seconds (when not use)
