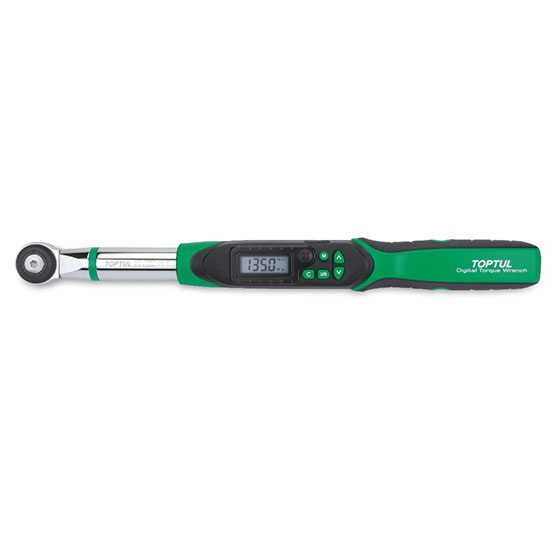

Digital Torque Wrench with Reversible Ratchet Insert Tool

  • ITEM NO: DT-030I2 / DT-135I3 / DT-200I4 / DT-340I4
  • Torque Accuracy: CW ±2% & CCW ±3% tolerance of the set scale value
  • Operating mode: Peak hold mode (peak value detection) / Track mode (continuous display)
  • Torque Unit Selection: Nm, Ft-Lb, In-Lb, Kg-cm
  • Storage Memory: 50 Readings

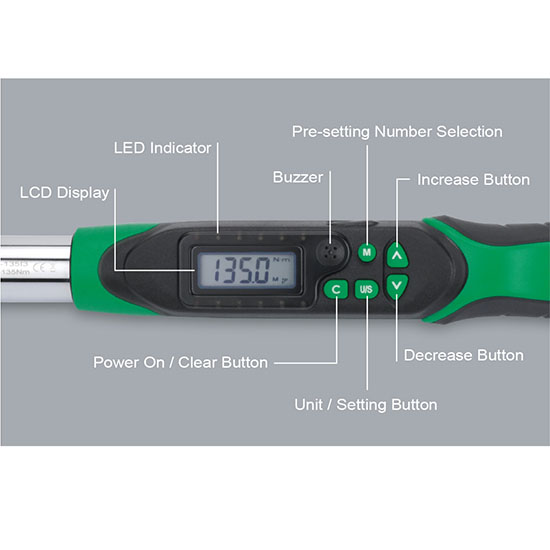

  • 12 way lights and buzzer when torque value is reached
  • Low battery indicator and auto shut off (after 5 minutes)
  • The ratchet is exchangeable, providing the option of using a 9×12 mm or 14×18 mm head size
  • 2 Position, 52 Teeth Ratcheting Mechanism: Forward / Reverse
  • Ergonomically designed bi-component soft grip handle
  • Tested and certified according to DIN EN ISO 6789, BS EN 26789, ASME B107.28
DEALERS
Add to Enquiry
Categories: ,

Features

ITEM NO. HEAD SIZE

(mm)		 Torque Range Reversible
Ratchet		 L
(mm)		 CTN
(PCS)
(Nm) (Ft-Lb) (In-Lb) (Kg-cm)
DT-030I2 9×12 1.5~30 1.11~22.12 13.3~265.5 15.3~306.1 1/4″ 390 6
DT-135I3 9×12 6.8~135 5.0~99.5 60~1195 69~1378 3/8″ 410 6
DT-200I4 14×18 10~200 7.4~147.5 88~1770 102~2041 1/2″ 520 6
DT-340I4 14×18 17~340 12.5~250.7 150~3009 173~3469 1/2″ 640 6



Torque Accuracy CW ± 2% / CCW ±3 %
Storage Memory 50 Readings
Torque Unit Selection Nm, Ft-Lb, In-Lb, Kg-cm
Operating Mode Peak Hold Mode / Track Mode
Head Size  (W x H) 9 x 12mm – DT-030I2 & DT-135I3
14 x 18 mm – DT-200I4 & DT-340I4
Head Type Round Head Ratchet Insert
Gear Teeth 52 Teeth
Ratcheting Mechanism Clockwise / Counterclockwise
Working Temperature -10℃ ~ 60℃
Storage Temperature -20℃ ~ 70℃
Humidity Up to 90% non-condensing
Battery 1.5V AA x 2pcs
Battery Life 110 Hours
Auto Shut Off 5 Minutes (when not in use)
