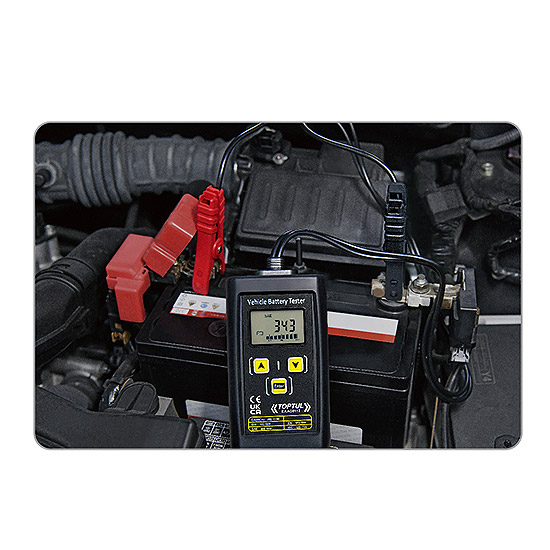

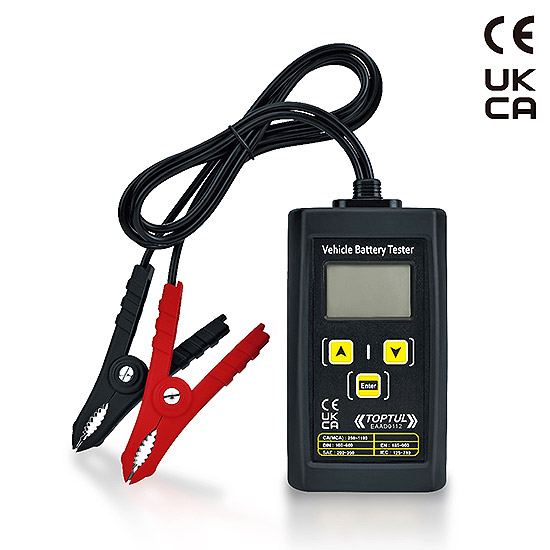

Digital Vehicle Battery Tester

  • ITEM NO: EAAD0112
  • Specially designed for testing 12 volt vehicle batteries, starting system and charging system
  • Suitable for Lead-Acid Battery (Sealed Maintenance Free Battery, Maintenance Free Battery, Standard Type Battery), EFB Battery, AGM Battery
  • Quickly obtains the test result by keying in the rated value (CCA/CA) of the battery
  • Easy to read illuminated LCD display
  • 0.85 meter long cable allows for flexible work

Function:

  • Battery Voltage Measurement
  • Battery Test – CCA*SAE, CCA*DIN,CCA*EN, CCA*IEC, CA (MCA)
  • Engine Start Voltage Measurement
  • Charging Voltage Measurement
DEALERS
Category:

Features

ITEM NO. EAAD0112
SPECIFICATIONS CTN: 30
Rated Battery Voltage 12V
Rating Systems SAE, DIN, EN, IEC, CA
Battery Test Ranges CCA*SAE : 200 ~ 950A
CCA*DIN : 105 ~ 600A
CCA*EN : 185 ~ 900A
CCA*IEC : 125 ~710A
CA (MCA) : 250 ~ 1190A
Voltage Range 9 ~ 15V
Operating Temperature 0 ~ 50°C (32 ~ 122°F)
Storage Temperature -30 ~ 70°C (-22 ~ 158°F)
Dimension 135mm (L) x 80mm (W) x 35mm (H)
Weight Approx. 330g
