Features

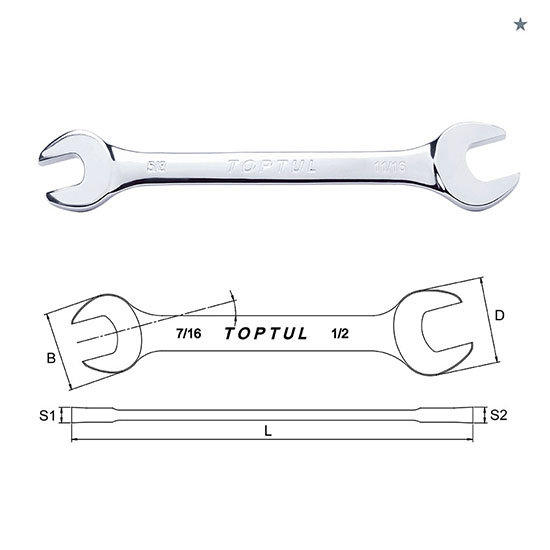

| ITEM NO. | SIZE (inch) |
L (mm) |
B (mm) |
D (mm) |
S1 (mm) |
S2 (mm) |
BOX (PCS) |
CTN (PCS) |
| Mirror | ||||||||
| ACAJ0810 | 1/4×5/16 | 127 | 14.2 | 17.4 | 4.0 | 4.0 | 10 | 320 |
| ACAJ1012 | 5/16×3/8 | 145 | 18.1 | 21.3 | 4.7 | 4.7 | 10 | 320 |
| ACAJ1820 | 9/16×5/8 | 190 | 31.6 | 33.6 | 5.7 | 5.7 | 10 | 120 |
| ACAJ1822 | 9/16×11/16 | 194 | 31.6 | 38.1 | 6.2 | 6.2 | 10 | 120 |
| ACAJ2224 | 11/16×3/4 | 223 | 40.1 | 42.1 | 6.8 | 6.8 | 10 | 80 |
| ACAJ2428 | 3/4×7/8 | 236 | 44.1 | 48.1 | 7.5 | 7.5 | 10 | 80 |
| ACAJ2628 | 13/16×7/8 | 236 | 44.1 | 48.1 | 7.5 | 7.5 | 10 | 80 |
| ACAJ3032 | 15/16×1 | 267 | 53.1 | 57.6 | 8.4 | 8.4 | 5 | 40 |
| ACAJ3440 | 1-1/16×1-1/4 | 294 | 64.1 | 68.1 | 9.4 | 9.4 | 5 | 40 |
| ACAJ3842 | 1-3/16×1-5/16 | 294 | 64.1 | 68.1 | 9.4 | 9.4 | 5 | 40 |
| ACAJ4652 | 1-7/16×1-5/8 | 377 | 76.1 | 85.1 | 12.7 | 12.7 | 2 | 12 |
