Double Ring Wrench 45° Offset - SAE (Mirror Polished)

Double Ring Wrench 45° Offset – SAE (Mirror Polished)

ITEM NO: ACAH series

  •  Chrome Vanadium Steel Material
  •  45° offset ring end in design for convenient operation in recess
  •  Professional quality for maximum durability and corrosion resistance
  •  Mirror Polished
  •  SAE
DEALERS
Add to Enquiry
Categories: ,

Features

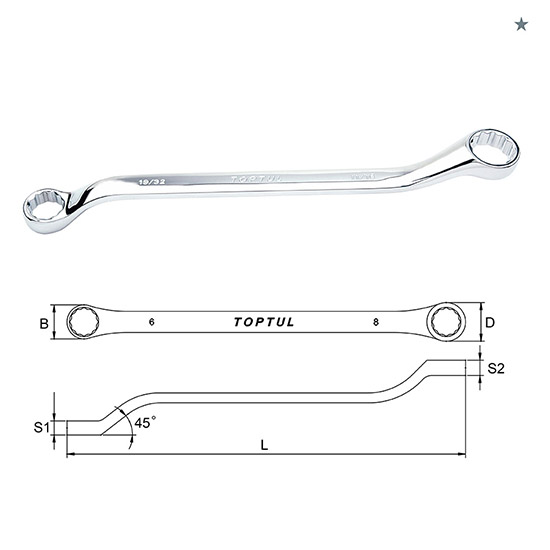

ITEM NO. SIZE
(inch)		 L
(mm)		 B
(mm)		 D
(mm)		 S1
(mm)		 S2
(mm)		 BOX
(PCS)		 CTN
(PCS)
Mirror
ACAH0810 1/4×5/16 165 10.3 12.7 5.2 5.7 10 240
ACAH1012 5/16×3/8 170 13.5 16.2 5.7 6.2 10 240
ACAH1214 3/8×7/16 180 15.2 17.2 6.2 6.7 10 120
ACAH1416 7/16×1/2 206 18.0 21.0 7.7 8.2 10 80
ACAH1618 1/2×9/16 206 19.5 21.7 7.7 8.2 10 80
ACAH1820 9/16×5/8 232 21.7 23.5 8.2 8.7 10 80
ACAH1922 19/32×11/16 237 22.5 25.7 9.7 9.9 10 80
ACAH2022 5/8×11/16 237 23.7 25.7 9.7 9.9 10 80
ACAH2224 11/16×3/4 270 26.5 29.2 10.7 11.2 10 80
ACAH2425 3/4×25/32 270 27.7 29.2 10.7 11.2 10 80
ACAH2426 3/4×13/16 292 28.7 32.2 11.4 11.9 5 30
ACAH2428 3/4×7/8 292 28.7 32.2 11.4 11.9 5 30
ACAH2628 13/16×7/8 292 28.7 32.2 11.4 11.9 5 30
ACAH2830 7/8×15/16 327 32.2 34.2 11.9 12.7 5 30
ACAH3032 15/16×1 362 34.7 38.2 13.2 13.7 5 30
ACAH3236 1×1-1/8 372 39.5 42.1 13.2 14.7 5 30
ACAH3436 1-1/16×1-1/8 372 39.5 42.1 13.2 14.7 5 30
ACAH3440 1-1/16×1-1/4 392 44.7 48.5 16.2 17.7 2 12
ACAH3640 1-1/8×1-1/4 392 44.7 48.5 16.2 17.7 2 12
ACAH4046 1-1/4×1-7/16 402 48.5 54.5 17.2 19.2 2 12
ACAH4248 1-5/16×1-1/2 440 54.5 62.5 18.2 20.2 2 12
ACAH4652 1-7/16×1-5/8 440 54.7 62.7 18.2 20.2 2 12
ACAH5258 1-5/8×1-13/16 470 61.7 69.7 19.2 20.7 2 8
ACAH5460 1-11/16×1-7/8 470 61.7 69.7 19.2 20.7 2 8
ACAH5864 1-13/16×2 510 70.5 76.5 20.7 21.7 2 8
ACAH7278  2-1/4×2-7/16 610 83.7 91.7 22.7 23.7 2 4
