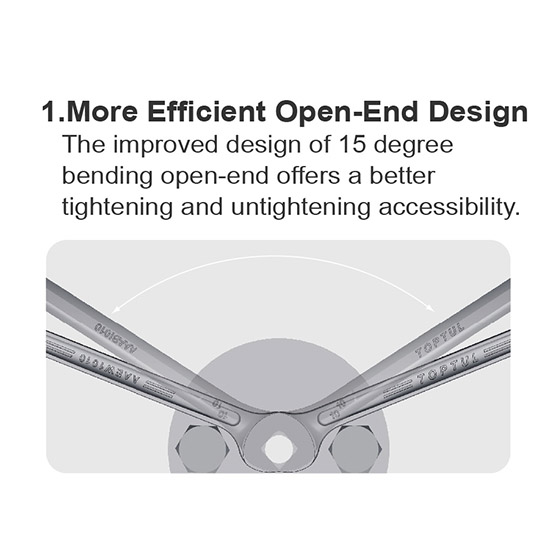

Hi-Performance Combination Wrench 15° Offset - METRIC

Hi-Performance Combination Wrench 15° Offset – METRIC

ITEM NO: AAEX series

  •  Chrome Vanadium Alloy Steel

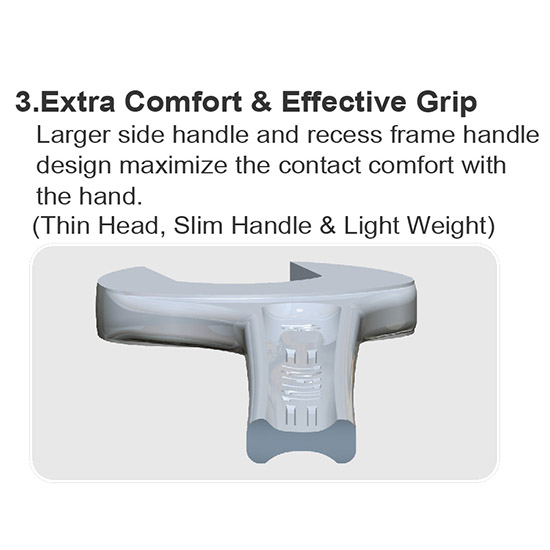

  •  Thin profile head and ring for easy access in confined spaces
  •  Light weight model
  •  High torque performance as over 1.6 times as ANSI & DIN standard
  •  Satin chrome finished for maximum durability and corrosion resistance
  •  METRIC
DEALERS
Add to Enquiry
Categories: ,

Features

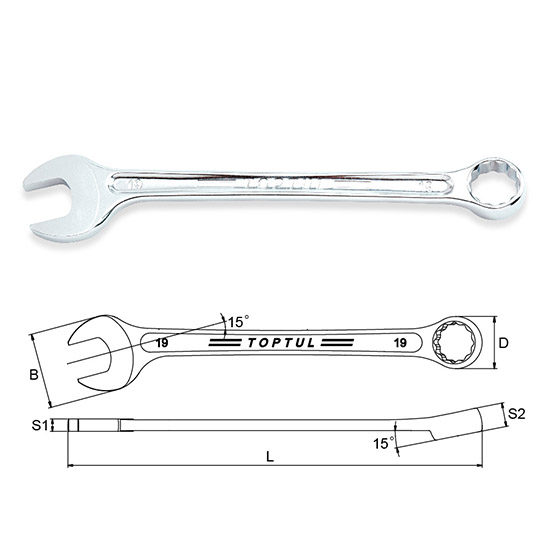

ITEM NO. SIZE
(mm)		 L
(mm)		 B
(mm)		 D
(mm)		 S1
(mm)		 S2
(mm)		 BOX
(PCS)		 CTN
(PCS)
Satin
AAEX5E5E 5.5 104 14.1 10.2 3.2 6.0 10 320
AAEX0606 6 104 14.1 10.2 3.2 6.0 10 320
AAEX0707 7 114 16.0 11.4 3.4 6.2 10 320
AAEX0808 8 124 17.8 12.7 3.9 6.7 10 320
AAEX0909 9 131 19.9 14.0 3.9 7.1 10 320
AAEX1010 10 143 21.5 15.1 4.2 7.6 10 320
AAEX1111 11 151 23.9 16.7 4.7 8.1 10 240
AAEX1212 12 160 25.7 17.9 4.8 8.4 10 120
AAEX1313 13 169 28.0 19.5 5.2 8.7 10 120
AAEX1414 14 180 30.0 20.7 5.3 9.5 10 120
AAEX1515 15 192 32.9 22.2 5.4 10.0 10 80
AAEX1616 16 198 34.0 24.0 5.9 10.5 10 80
AAEX1717 17 206 36.0 25.4 6.0 10.9 10 80
AAEX1818 18 214 38.2 26.5 6.6 11.5 10 80
AAEX1919 19 223 40.5 28.3 6.7 11.9 10 80
AAEX2020 20 236 42.5 29.5 6.9 12.5 10 80
AAEX2121 21 243 44.5 30.7 7.2 12.8 10 80
AAEX2222 22 255 46.5 32.0 7.3 13.3 5 40
AAEX2323 23 266 48.5 33.5 7.6 13.6 5 40
AAEX2424 24 274 50.0 35.2 8.0 14.0 5 40
AAEX2525 25 284 52.5 36.6 8.2 14.5 5 40
AAEX2626 26 294 54.0 37.6 8.5 15.1 5 30
AAEX2727 27 304 56.0 39.5 8.6 16.5 5 30
AAEX2828 28 315 58.0 40.8 8.8 17.0 5 30
AAEX2929 29 327 60.0 42.2 9.1 17.5 5 30
AAEX3030 30 340 62.0 43.7 9.4 18.5 5 30
AAEX3232 32 355 66.0 46.1 10.0 19.5 5 20
