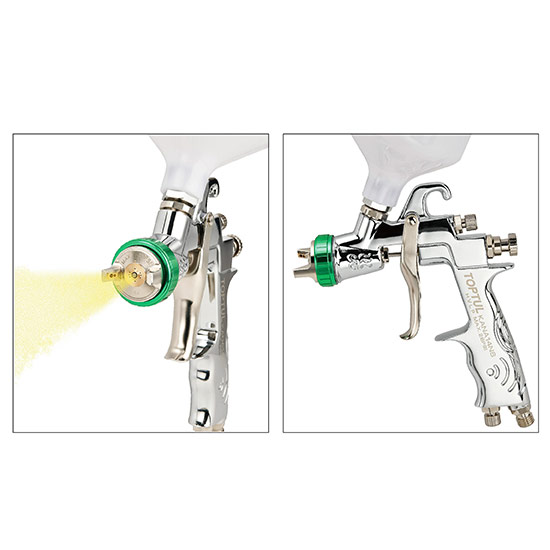

HVLP Gravity Feed Spray Gun

ITEM NO: KANA14N6
Highly efficient HVLP design complies with environmental regulation requiring high volume, low pressure, saving materials and very lower over-spray
Professional gravity feed spray gun with 1.4mm set-up, ideal for applying top coats
Air and paint flow control device for fine adjustment of spray flow
Round/flat fan control allows spray pattern to be adjusted for any job
Brass air cap with stainless steel needle and nozzle suitable for most coatings

Contents :

• 1PC HVLP Gravity Feed Spray Gun
• 1PC Nylon Gravity Cup

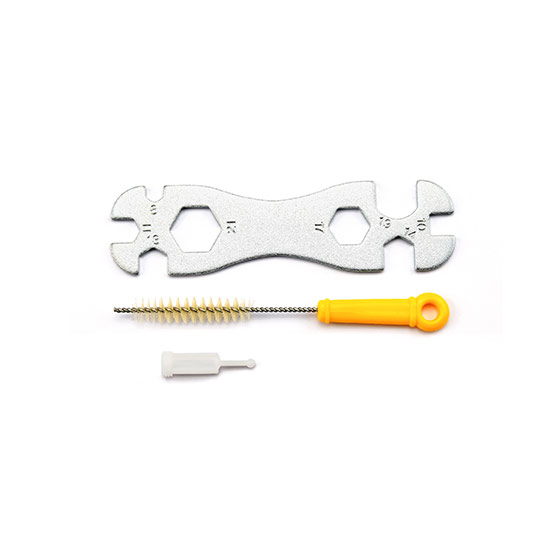

• 1PC Multifunctional Wrench
• 1PC Cleaning Brush
• 1PC Paint Filter

Features

ITEM NO.

KANA14N6

SPECIFICATIONS

CTN: 10

Feed Type

Gravity

Cup Capacity

600 ml

Standard Nozzle

1.4 mm

Optional Nozzle

1.0, 1.2, 1.3, 1.4, 1.5, 1.6, 1.8, 2.0, 2.5 mm

Fluid Output

150 ml/min

Pattern Width

310 mm

Working Pressure

15-28 PSI / 1.03-1.93BAR

Air Consumption

12 CFM

Air Inlet

1/4″ PF

Gun Weight

1.13 lbs / 514 g
