Features
| ITEM NO. | Hose Size Ø |
 (mm) |
L (mm) |
BOX (PCS) |
CTN (PCS) |
| KA20SH2J | 5/16″ | 19 | 71.5 | 5 | 200 |
| KA30SH2J | 3/8″ | 19 | 71.5 | 5 | 200 |
| KA40SH2J | 1/2″ | 19 | 77.5 | 5 | 200 |

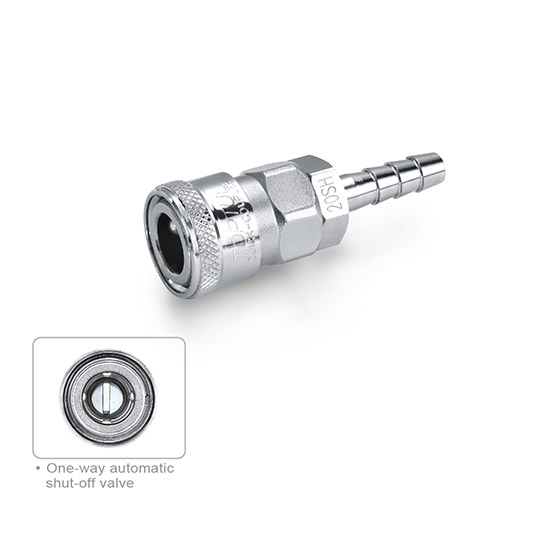

Quick-Coupler with Hose Connection (JP Type)
ITEM NO: KA20SH2J / KA30SH2J / KA40SH2J
Rugged steel construction for high corrosion resistance and long life
One-way automatic shut-off valve in socket
Max. Working Pressure: 218 PSI (15 Bar / 15.3 kgf/cm²)
Max. Pressure: 290 PSI (20 Bar / 20.4 kgf/cm²)
Working Temperature: -20˚C to 80˚C
